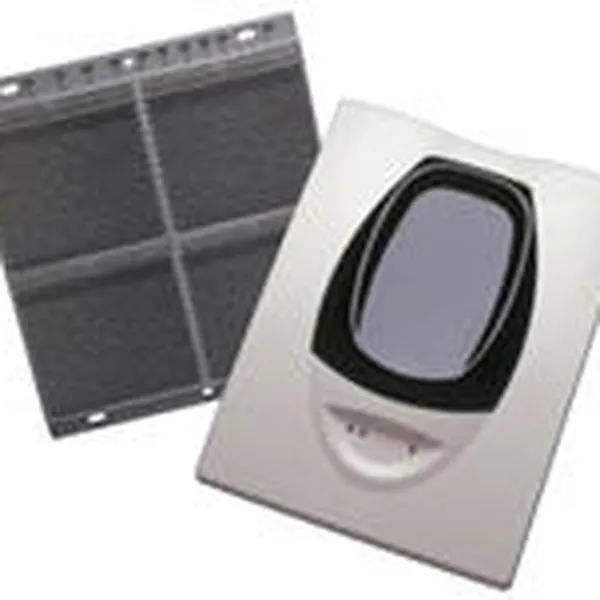

Name: ĐẦU BÁO KHÓI DẠNG TIA BEAM 1224
Brand: No brand
SKU: NoSku
Availability: InStock
Rating: 5 (1 reviews)

ĐẦU BÁO KHÓI DẠNG TIA BEAM 1224

Mô tả sản phẩm

Detection:	Infrared Beam
Wiring:	4-wire
Operating Voltage:	10.2 to 32 VDC
Alarm Current:	38.5mA max. avg.
Standby Current:	17mA max. @ 24 VDC
Trouble Current:	8.5mA max. @ 24 VDC
Temperature Range:	-22°F to 131°F (-30°C to 55°C)
Humidity Range:	10% to 93% RH noncondensing
Range:	16 ft. to 328 ft. (5m to 100m)
Sensitivity:	Level 1 - 25%; Level 2 - 30%; Level 3 - 40%; Level 4 - 50%; Acclimate Level 1 - 30-50%; Acclimate Level 2 - 40-50%
Dimensions:	Detector: 10" H x 7.5" W x 3.3" D (254mm x 191mm x 84mm); Reflector, 16-230ft.: 7.9" H x 9.1" W (200mm x 230mm)
