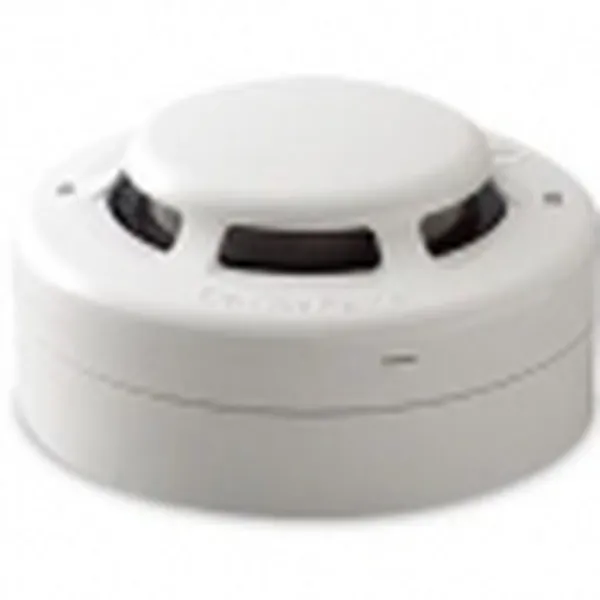

Đầu báo khói horing AH-0311-2 24V AH-0311-4 12V


AH-0311-2
Đầu báo khói horing AH-0311-2 24V AH-0311-4 12V

Còn hàng

Đầu báo khói horing AH-0311-2 24V AH-0311-4 12V

Chi tiết tính năng kỹ thuật của sản phẩm :
* Operation Theory :
- The infrared light beam from Transmitter intersects the
smoke particles will cause the light spread to all directions.
- When Receiver sensed the light, it will send signal to
control panel for fire alarm status as soon as the density of
smoke reaches pre-determined alarm level.

* Specification :
- Model : AH-0311-2, AH-0311-3, AH-0311-4
- Voltage Range : 12 ~ 30V DC
- Standby Current : 35uA
- Permissible Current : 120mA
- Alarm Current : 40mA 30mA 40mA
@24V DC 470
- Sensitivity Setting : Comply to EN54, UL268
- Ambient Temperature : -10 C ~ +55 C
- Material : Fire-proof plastic
- Dimensions : 102mm(Dia.) x 47mm(H)
- Weight : 155g 157g 165g
- Color : Ivory

* Effective Alert Area :
- Building Height : Area Covered
- Under 4M : 150 M2
4 ~ 20M : 75 M2

* Order Information :
- AH-0311-2 : 2-Wire
- AH-0311-3 : 3-Wire With Remote Indicator
Output
- AH-0311-4 : 4-Wire With Relay Output

* Specification (Resettable):
- Model : AH-0311-S, AH-0311-BS, AH-0311-BPS
- Alarm Current : 15mA 50mA 80mA
- Standby Current : 115uA 115uA 15mA
- Voltage Range : 12V DC 12V DC 12V DC
- Weight : 168g 170g 170g

* Order Information (Resettable):
- AH-0311-S : + Relay Output
- AH-0311-BS : + Buzzer + Relay Output
- AH-0311-BPS : + Buzzer + Power off & Wire
Disconnection Warning + Relay Output

* Resettable Type Detector:
- This unit is designed for relay output feature with optional
individual power source and it has used widely in the
current market. This resettable detector does not only used
for fire alarm system but also will supervise input power via
optional relay output for power breakdown or wire break,
fault relay contact will open when power breakdown
happened and fire alarm signal will transmitted to
connected system or computer terminal when detector is
activate. When the alarm signal is clear and the detector
will automatically back to standby status. Optional built-in
buzzer could sound for warning purpose at the first stage of
fire. This detector is currently used quite often in security
system and is also promote to apply for communication,
banking, shipping or art business and it still under
development for more applications in the future.

  • Mọi chi tiết xin Liên Hệ :
  • CÔNG TY TNHH XNK TM DV TM PCCC PHÁT ĐẠT

    ĐC : 41 Lũy Bán Bích, P.Tân Thới Hòa, Q. Tân Phú, Tp.HCM

    Tel: 08.66825187 - 0938367082 - 0964207203

    Fax: 08.39611090

    Email : pcccphatdat@gmail.com hoặc pcccphatdat@yahoo.com.vn

    Web : www.114pccc.com   , phongchayphatdat.com
